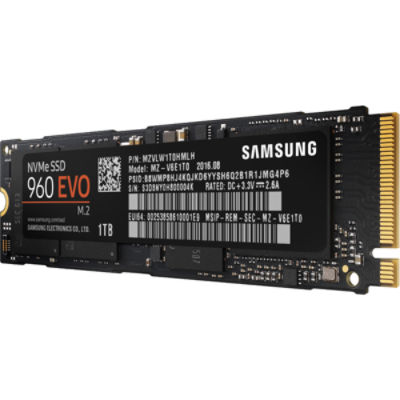

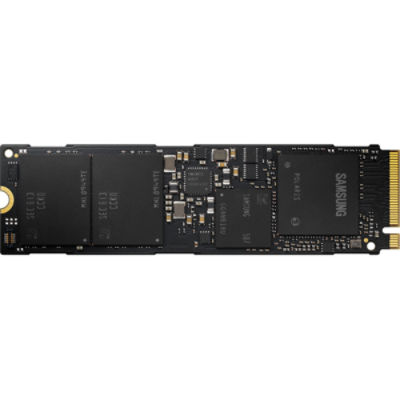

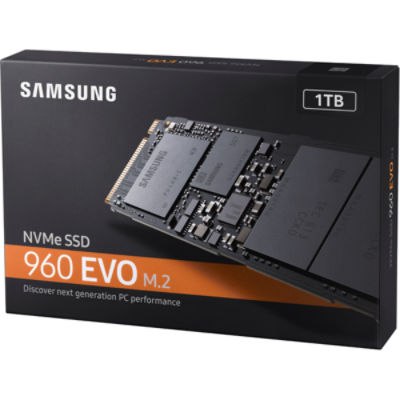

Samsung 960 EVO 1TB M.2

Type Application Storage Key Features General Environmental Specs Form Factor Dimensions (W x D x H) Weight Software Warranty

•

  Product Type

  NVMe M.2

  Usage Application

  Yes

  Interface

  PCIe 3.0 x4, NVMe 1.1

•

  Consumer

  Client PCs

•

  Capacity

  1000 GB (1GB=1 Billionbyte by IDEMA)*

•

  Sequential Read Speed

  Up to 3,200 MB/sec**

  Sequential Write Speed

  Up to 1,900 MB/sec**

  Random Read Speed

  Random Read (4KB, QD32):
  Up to 380,000 IOPS (Thread 4)**

  Random Read (4KB, QD1):
  Up to 14,000 IOPS (Thread 1)**

  Random Write Speed

  Random Write (4KB, QD32):
  Up to 360,000 IOPS (Thread 4)**

  Random Write (4KB, QD1):
  Up to 50,000 IOPS (Thread 1)**

  Controller

  Samsung Polaris controller

  NAND Flash

  Yes

  Trim Support

  Yes

  AES Encryption

  AES 256-bit for User Data EncryptionTCG Opal Family Spec and eDrive(IEEE1667) to be supported by FW update

  S.M.A.R.T. Support

  Yes

  GC (Garbage Collection)

  Auto Garbage Collection Algorithm

  Device Sleep Mode Support

  5mW(L1.2)

  Internal Storage

  Yes

  Temperature proof

  Yes

•

  Power Consumption (W)

  ***Average: Typ. 5.7 Watts, Idle : 1.2W(ASPT off)

  Reliability (MTBF)

  1.5 Million Hours Reliability (MTBF)

•

  Operating Temperature

  32ºF - 158ºF

  Shock

  1500G , duration 0.5m sec, 3 axis

•

  Product

  NVMe M.2

•

  Product

  3.15" x 0.87" x 0.09"

•

  Product

  0.02 lb.

•

  Management SW

  Magician Software for SSD management

•

  Product

  3 Year Limited Warranty or 400TBW Limited Warranty

•
